3.3 Inch IPS TFT LCD Module 320×480 QSPI RGB Interface With Capacitive Touch Panel
This 3.3 inch TFT LCD module is designed for smart home control panels, HMI devices, and a wide range of embedded applications. The IPS display technology ensures a wide viewing angle and stable image performance, making the screen easy to read from different directions. Its compact and lightweight design allows seamless integration into space-limited devices while maintaining reliable operation.
The module supports both QSPI and RGB interfaces, enabling engineers to quickly integrate it into diverse control systems and electronic products. Combined with a capacitive touch panel, it allows smooth user interaction and supports modern graphical user interfaces. It is built to be durable, capable of operating under a wide temperature range, making it suitable for both indoor and industrial environments.
This LCD module is ideal for smart home terminals, industrial controllers, IoT equipment, smart appliances, and other interactive display solutions. Its precise touch response, high contrast ratio, and bright IPS panel provide a premium user experience while maintaining energy efficiency. Engineers and designers will find it a versatile choice for developing professional-grade embedded devices.
In addition, this module is designed for easy integration into control panels, medical devices, portable instruments, and industrial monitoring equipment. It offers consistent performance even under continuous operation and provides clear visibility in various lighting conditions. Its stable and responsive touch functionality ensures smooth operation in demanding applications, making it a reliable solution for both commercial and industrial products.
Key Features
- IPS wide viewing angle technology
- Capacitive touch operation
- QSPI and RGB interface support
- Compact module design
- Suitable for embedded systems
- Stable display performance
- Designed for smart home and HMI applications
Applications
- Smart Home Control Panels
- HMI Devices
- Industrial Controllers
- IoT Equipment
- Smart Appliances
- Portable Electronic Devices
- Medical Instruments
- Industrial Monitoring Equipment

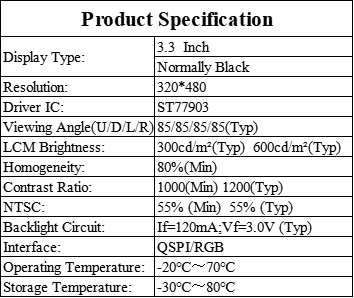

Product Specifications
|
Number Of Pixels
|
320*480pixels
|
|
Active Area
|
46.46*69.7mm
|
|
Module Outline
|
49.76*78.36*2.21mm
|
|
Aspect Ratio
|
3:2
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
85/85/85/85
|
|
Contrast Ratio
|
1000(Min) 1200(Typ)
|
|
NTSC
|
60%Typ
|
|
LCM Brightness
|
300 cd/m²(Typ) 600 cd/m²(Typ)
|
|
Interface
|
QSPI/RGB
|
|
Operating Temperature
|
-20~+70℃
|
|
Storage Temperature
|
-30~+80℃
|
3.3 Inch TFT LCD Module Drawing
