5.7 Inch Vertical IPS TFT LCD Touch Display 720x1440 MIPI For Security Systems
Product Introduction
This 5.7 inch vertical IPS TFT LCD touch display features a 720×1440 resolution and is designed for Security System Display applications that require a tall screen layout. The module combines IPS viewing performance, MIPI interface support and capacitive touch functionality, making it suitable for security terminals, access control devices and related embedded display products. Its vertical format is practical for showing menus, status pages and monitoring information in a clear and organized way.
Display Performance
• 720×1440 resolution supports vertical content presentation and clear interface layout.
• IPS TFT LCD technology provides 80/80/80/80 viewing angles for consistent visibility.
• Normally Black display mode helps maintain stable screen performance.
• Optional brightness versions of 300 cd/m² and 600 cd/m² support different installation environments.
• The 5.7 inch size offers a larger display area than 5.5 inch models, while keeping a compact vertical structure.
Touch And Integration
This TFT LCD display module supports a capacitive touch panel with I2C communication, which helps with integration into security equipment and embedded systems. The touch structure uses GF/GFF configuration and provides a practical solution for interactive control pages. With a slim module outline of 67.00 × 135.90 × 1.5 mm, the display can be integrated into devices with limited internal space while still maintaining a larger viewable area.
Security Application Value
• Suitable for Security System Display terminals used in access control and monitoring.
• Can be integrated into smart building security devices and management panels.
• Applicable to embedded display equipment requiring vertical screen content.
• Suitable for intelligent security products that need both display and touch operation.
• Can be used in door intercom systems, security control terminals and monitoring interfaces.
The 5.7 inch IPS TFT LCD touch display combines a vertical screen layout, capacitive touch support and flexible brightness options, making it a practical display solution for Security System Display, Embedded Display and related security control applications.

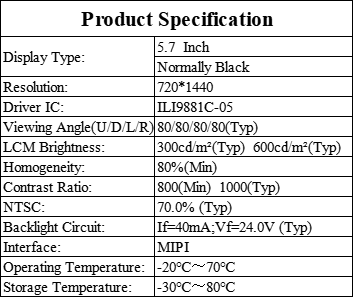

Product Specifications
|
Number Of Pixels
|
720 * 1440pixels
|
|
Active Area
|
64.8 * 129.60mm
|
|
Module Outline
|
67.00*135.90*1.5mm
|
|
Aspect Ratio
|
18:9
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
80/80/80/80
|
|
Contrast Ratio
|
800(Min) 1000 (Typ)
|
|
NTSC
|
70%Typ
|
|
LCM Brightness
|
300 cd/m²(Typ) 600 cd/m²(Typ)
|
|
Interface
|
MIPI
|
|
Operating Temperature
|
-20~+70℃
|
|
Storage Temperature
|
-30~+80℃
|

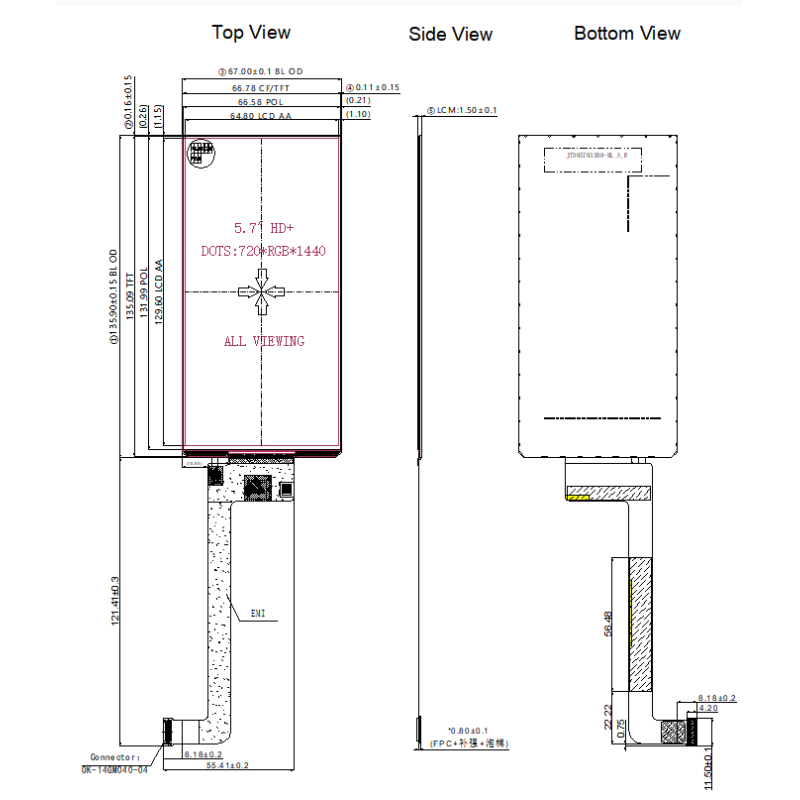

Display Module Drawing
