5.99 Inch IPS TFT LCD Touch Display Module 720x1440 MIPI For Access Control Systems
Product Introduction
This 5.99 Inch IPS TFT LCD Touch Display Module features a 720×1440 resolution and an 18:9 vertical screen format, making it suitable for Security System Display and Embedded Display applications. The larger display area allows more information to be shown on a single screen, helping improve interface efficiency in monitoring, access control and security management equipment. With MIPI interface support and capacitive touch functionality, the module can be integrated into a wide range of intelligent security products.
User Interface Advantages
• The 18:9 vertical display format provides additional space for menus, status information and monitoring content.
• 720×1440 resolution helps present text, icons and operational data with improved clarity.
• IPS technology supports stable visibility from different viewing positions.
• Capacitive touch functionality enables convenient interaction for security control applications.
Integration And Application Benefits
• MIPI interface supports integration with embedded control platforms and security terminals.
• Slim module design helps optimize internal device space utilization.
• Suitable for access control systems, video intercom devices and security monitoring equipment.
• Applicable to smart building management terminals and intelligent security control panels.
The 5.99 Inch IPS TFT LCD Touch Display Module combines a practical vertical display layout, touch operation and flexible integration capability, making it suitable for Security System Display, Embedded Display and smart security applications requiring efficient information presentation and user interaction.

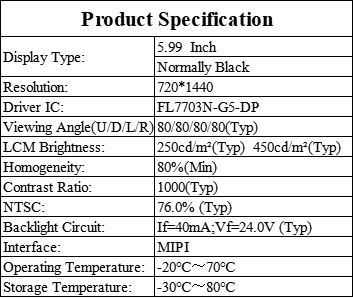

Product Specifications
|
Number Of Pixels
|
720 * 1440pixels
|
|
Active Area
|
68.04 * 136.08mm
|
|
Module Outline
|
70.24*142.28*1.52mm
|
|
Aspect Ratio
|
18:9
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
80/80/80/80
|
|
Contrast Ratio
|
1000 (Typ)
|
|
NTSC
|
76%Typ
|
|
LCM Brightness
|
250 cd/m²(Typ) 450 cd/m²(Typ)
|
|
Interface
|
MIPI
|
|
Operating Temperature
|
-20~+70℃
|
|
Storage Temperature
|
-30~+80℃
|

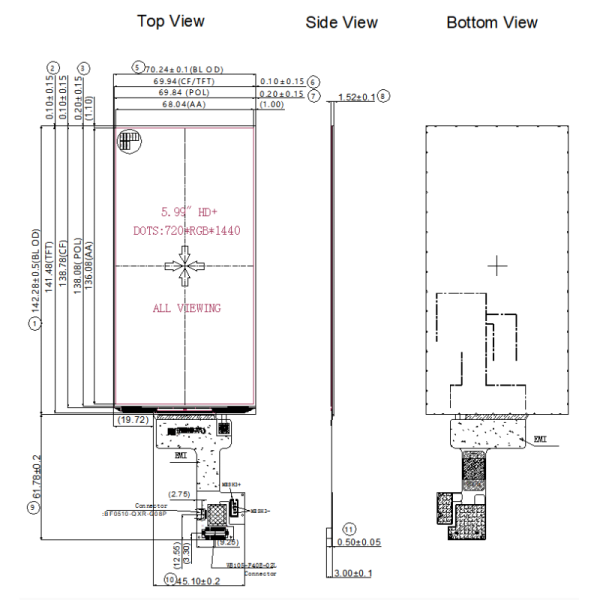

Display Module Drawing
